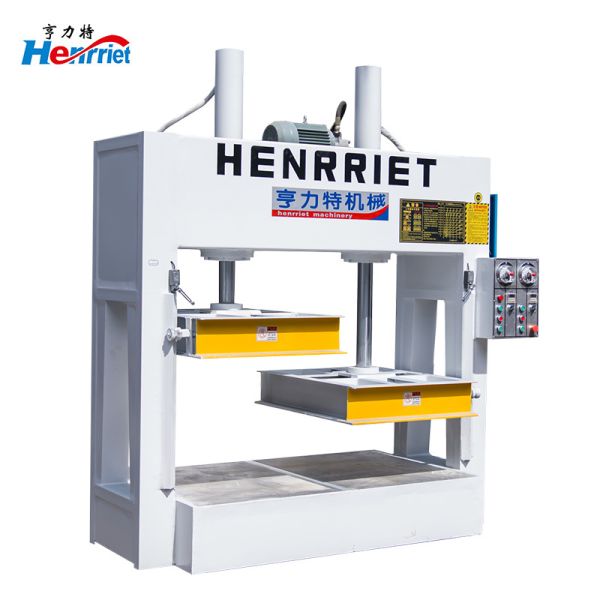

Mini Segmented Cold Press Machine
Product Description:
A hydraulic cold press is a type of industrial equipment that uses a hydraulic system as its power source to press sheets or workpieces together through oil pressure transmission. It is widely used in furniture manufacturing, wooden door processing, sheet metal pressing, metal forming, and other fields. Its core advantages lie in stable pressure, simple operation, high efficiency, and adaptability to workpieces of varying sizes.
Machine Features and Advantages
1) Efficient and Stable
● Hydraulic transmission provides continuous and stable pressure, with pressure tolerances controlled within ±1%, ensuring uniform lamination quality.
● Fast lifting and lowering speeds, and adjustable hold time (up to 99.99 hours) meet diverse process requirements.
2) Safe and Reliable
● Equipped with an automatic overpressure control circuit and pressure oil shut-off protection to prevent motor overload and burnout.
● The electrical system incorporates multiple protection devices, and the operator panel integrates an emergency stop switch to ensure personnel and equipment safety.
3) Wide Applicability
● Adjustable positioning mechanism accommodates workpieces of varying sizes, It is suitable for laminating materials such as furniture panels, wooden doors, aluminum-plastic panels, and multi-layer boards.
● Modular design enables quick mold changes, accommodating high-volume, small-batch production.
4) Easy Maintenance
● The hydraulic system is well-sealed and leak-resistant, requiring only annual hydraulic oil replacement. Regular maintenance of other components maintains performance.
● Automatic fault alarm and one-touch reset functions minimize downtime and improve production efficiency.
Machine parameters
| Maximum Pressure |
50 T (customizable) |
| Worktable Sizes |
1250mm*1250mm (customizable) |
| Maximum Processing Thickness |
1000mm, 1300mm, 1500mm |
| Power supply |
380V/50Hz, three-phase |
| Power |
4kW (customizable) |
| Dwell time |
0-99.99 hours (Adjustable) |
| Platen lift speed |
10-12mm/s |
| Pressure accuracy |
±1% (ISO-compliant) |
| Size |
1900mm × 1250mm × 2550mm |
| Weight |
1500KG |
Service Support
1)Warranty: 1 year
2)Packaging: Film with foam
3)24-hour customer service hotline, respond to repair needs within 48 hours.
4)Free video training for operators and provision of process guidance manuals.
5) Lifetime technical support and software upgrade services.
